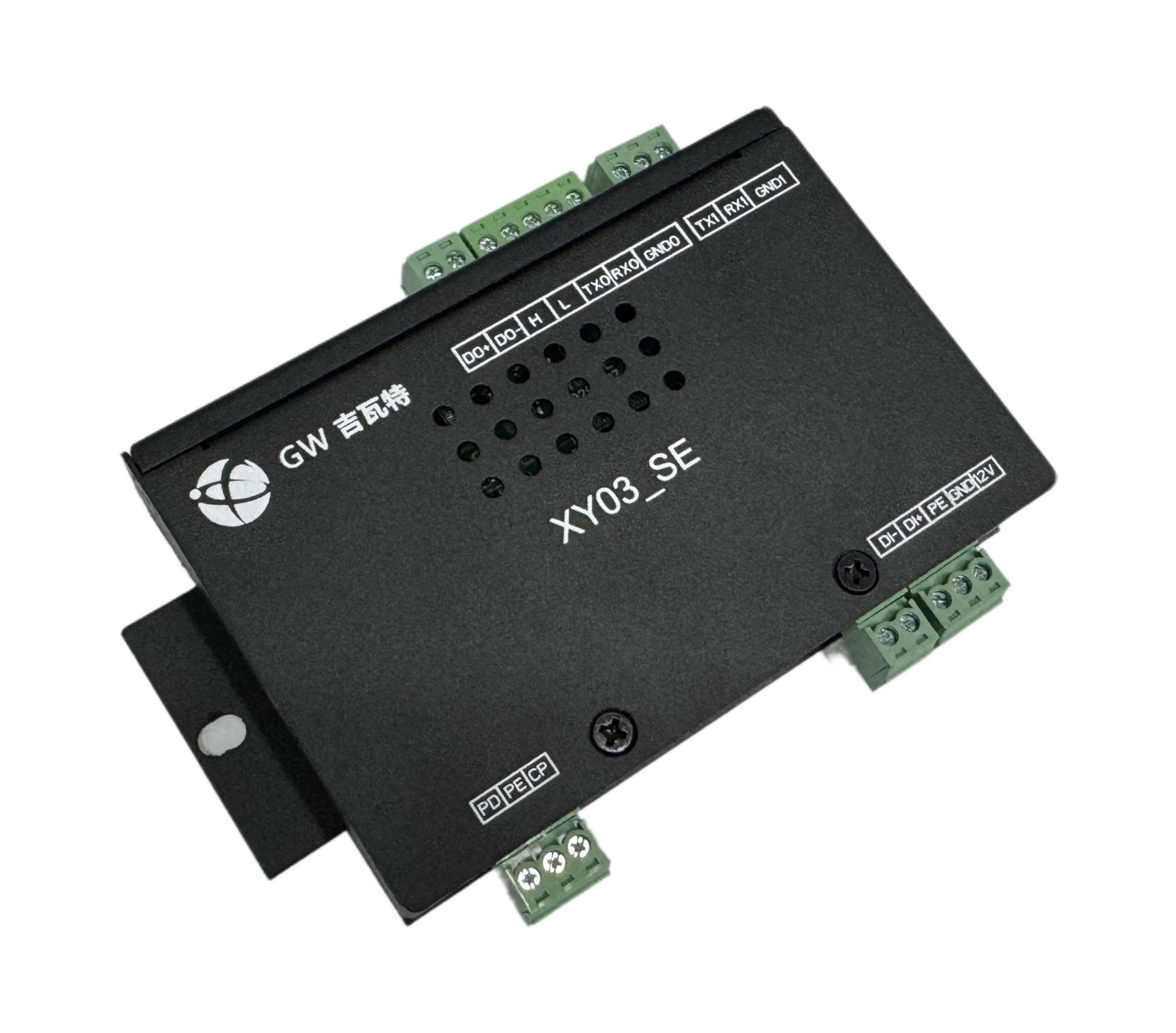

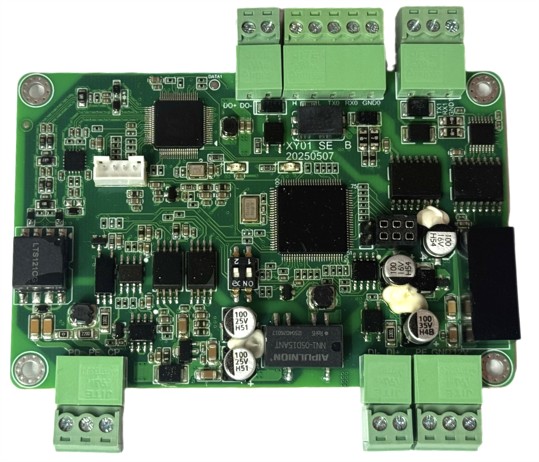

· A protocol converter specifically designed and developed for European and American standard electric vehicle AC charging controllers with PLC communication compatibility, supporting both European and American charging protocols.
· Supports PLC communication and PWM communication, meets the DIN 70121 and ISO 15118 charging protocol standards, and has passed the corresponding protocol compliance tests. The AC charging controller can easily charge European and American electric vehicles of various brands and models through this protocol converter.
· Meets the requirements of ISO 15118-1, ISO 15118-2, ISO 15118-3, ISO 15118-4, and ISO 15118-5 standards, and has passed CE certification testing.
· Meets the PNC functionality based on ISO15118-2, and will soon meet the PNC and V2G functionalities based on ISO15118-20. Fully supports the requirements of future amendments to the EU AFIR regulation.

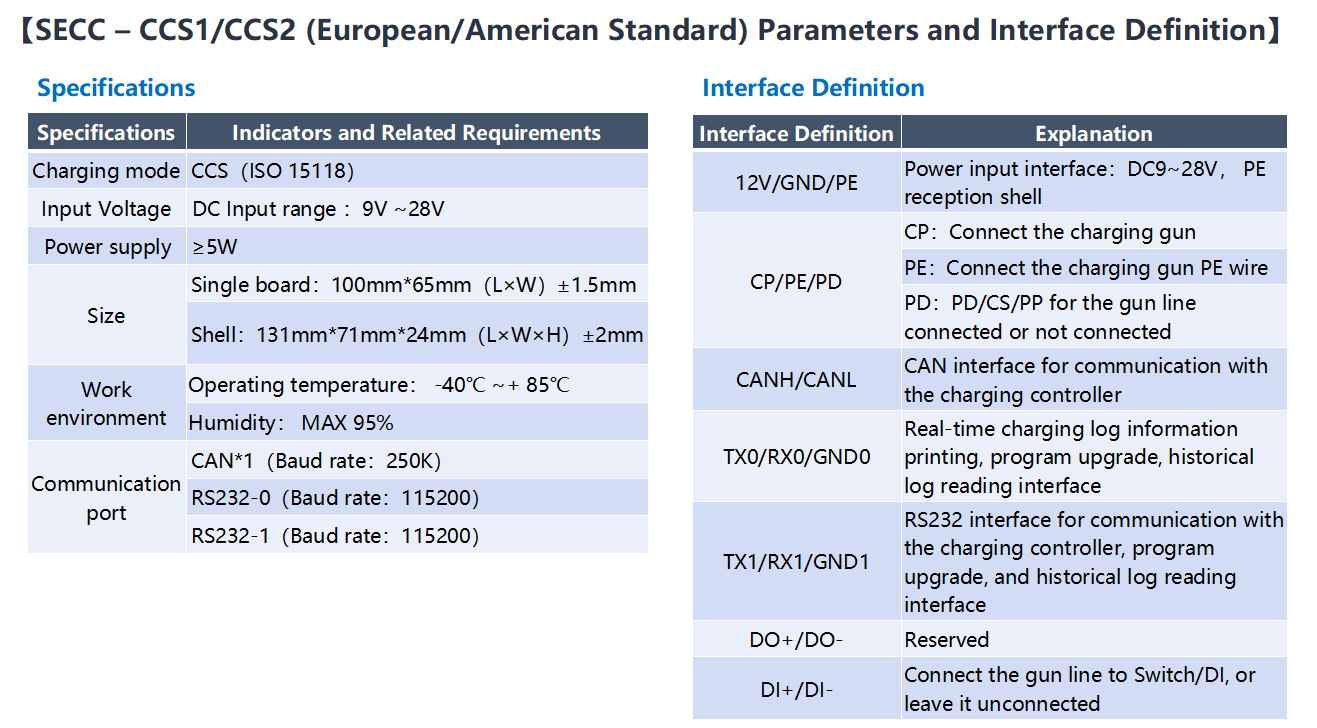

· Supports communication with CAN and RS232 charging controllers, allowing for more flexible integration.
· The power/communication interface is fully isolated, featuring high-level static electricity and surge protection, ensuring high reliability.
· It features online charging information printing, charging log storage, remote upgrades, and other functions, greatly facilitating on-site problem diagnosis, improving problem-solving efficiency, and saving after-sales maintenance costs.
